Advanced Infusion Pump Tester for Medical Device Performance

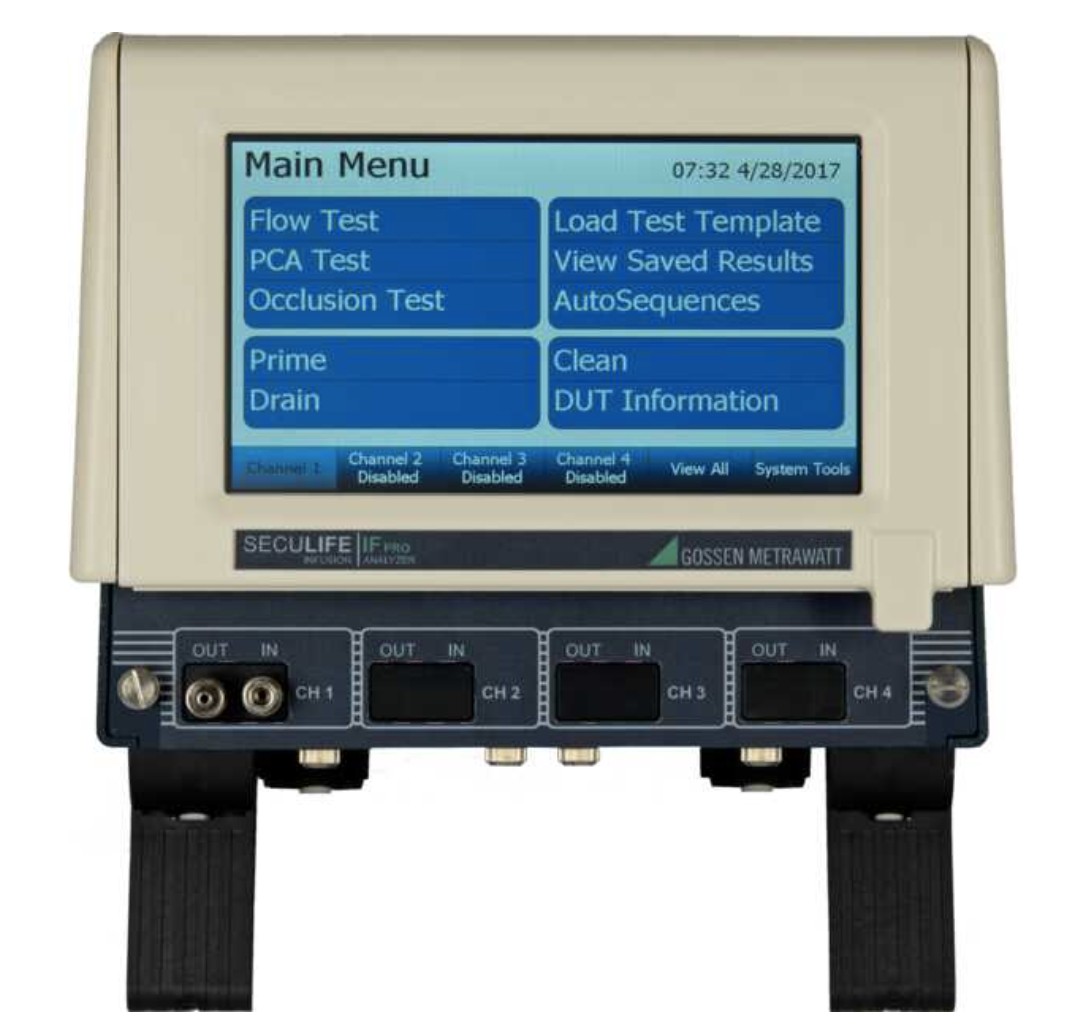

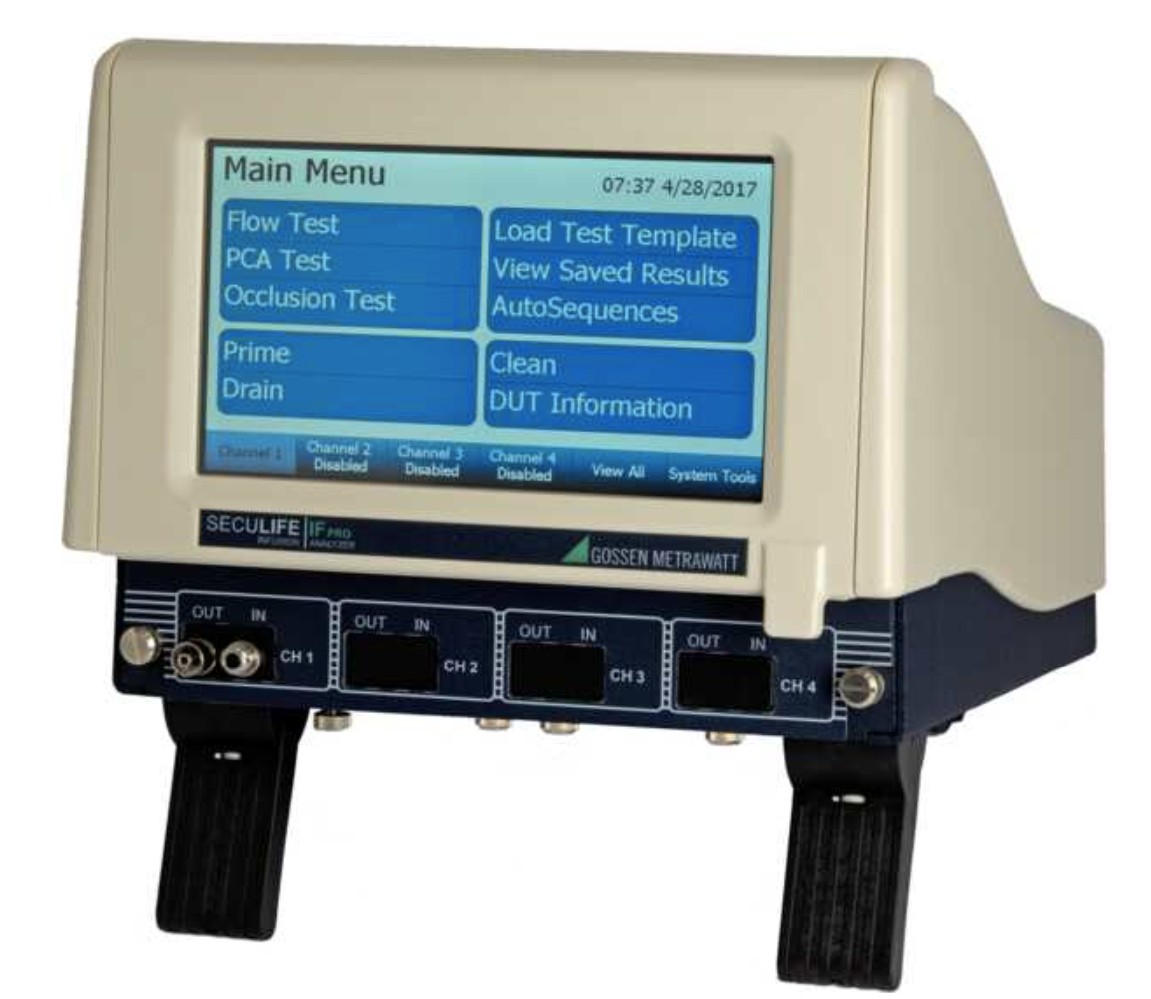

The SECULIFE IF PRO is a professional multi‑channel, modular infusion pump tester designed to deliver precise, efficient and comprehensive testing of infusion pumps used in healthcare facilities and medical device service environments. Engineered to meet the strict requirements of IEC 60601‑2‑24 (VDE 0750‑2‑24) for infusion device performance testing, this compact system supports both manual and fully automatic test sequences for consistent, reliable results.

• Multi‑Channel Testing: Available in 1, 2, 3 and 4‑channel configurations, letting you test multiple infusion pumps simultaneously or expand your system as needed.

• Modular Design: Independent, interchangeable flow modules can be retrofitted or calibrated without downtime for the entire system, increasing flexibility and uptime.

• Continuous Flow Monitoring: The patented stepper‑motor‑driven system enables continuous liquid flow monitoring without stopping and intermittent cleaning, yielding more realistic pump performance data.

• Comprehensive Test Functions: Measures flow rate, PCA/bolus performance, occlusion alarm response, back pressure simulation and trumpet curve analysis—key metrics for infusion pump evaluation.

• Automatic & Custom Test Sequences: Built‑in auto‑sequence functions support fully automated test procedures, saving time and reducing manual error.

• Wide Measurement Range: Covers very low to high flow rates (e.g., approx. 10 μL to 1600 mL/hr) with configurable pressure units (mmHg, psi, bar, kPa).

• Large Internal Memory: Offers substantial data storage (e.g., 32 GB internal memory) for test results, with USB data export and optional PC software control for reporting.

• Intuitive Touchscreen: Easy‑to‑use touchscreen interface simplifies operation and navigation through test menus.

• Software Integration: Includes GMC‑I Flow software for PC control, data display, report generation and archive management.
